Multimeters,
or any ohm meters, are not the best way to see if an antenna wire
is intact.
You will often get wrong, or no, results.
It is better to build your own test box, as explained by MW Circle's
Martin Hall. This
test box is very simple.

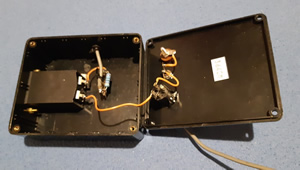

It includes a 9V battery, LED, resistor, and push-on switch in
series.
When connected in series with the antenna wire, you close the
switch and the LED lights up if there is continuity
The antenna wire is connected to the terminal post on the transformer
box.
The wire end the wire is connected to ground through either the
termination resistor or thematching transformer -- i.e. in series
with the antenna.
If the antenna is intact the LED will light when the button is
pressed.
If not, there is a break somewhere, which must be found and repaired.
With this you can test continuity from the near end of the beverage,
through the antenna wire, the terminating resistor and back via
the ground to the matching transformer earth.
A multimeter is easily confused on its resistance range because
the different galvanic action. It's
similar to asking a multimeter to measure the resistance of a
battery. A multimeter set on its voltage range will show positive
or negative voltages of up to a volt or so due to galvanic action
in the beverage and its earth system.

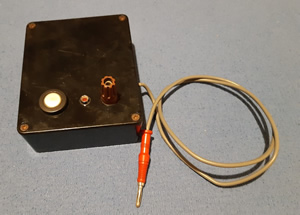

This test box can also be equipped with crocodile clips for ease-of-use.
|
|
